Eddy current probes

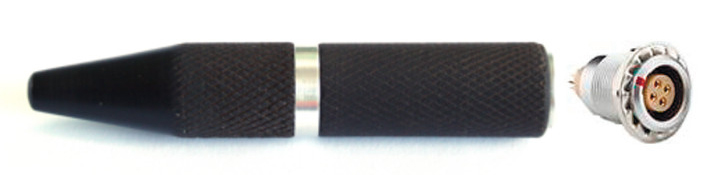

Straight surface pencil probe (Reflection type)

Request a Quote


Straight pencil type ECP:

  • is an absolute probe built according to the “Reflection” scheme
  • designed for testing of complex-shape parts with open access
  • applied together with the eddy current flaw detectors Eddycon C, Eddycon CL and flaw detectors from other producers.

Sensing element of eddy current probe coincides with the handle axis



Designation

Tip Ø ‘D’,
mm / inch

Length,
mm / inch

Frequency,
kHz

Connector

Material

SU450K05DA0

5 / .2

70 / 2.75

400 - 600

Lemo 04



Fe/NFe



SU

450K

05D

A

X

1

2

3

4

5


1. SU – surface probe for surface flaws detection.

2. Probe frequency:

“HZ” designates the Hz range; “К” designates the kHz range; “М” designates the MHz range.

3. Probe tip diameter, mm

4. Probe type designation "А". “А” – Absolute.

5. Probe modification number.
