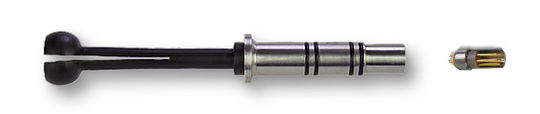

Dynamic Rotating ECP with Split Tip, for Holes Testing:
- typical differential transducer built according to the “Reflection” scheme, the sensing element of which is built into the split plastic case
- designed for testing of holes with a specified diameter range
- applied together with eddy current rotary scanners SVR-04/SVR-05 (OKOndt Group)
- compatible with the rotary scanners Mini Mite (OLYMPUS), Mini Drive (GE) and others
- applied together with the eddy current flaw detectors Eddycon C, Eddycon CL and flaw detectors from other producers.
Designation | Tip Ø ‘D’, | Working length | Length, | Frequency | Material | Connector |
RO3.1-3.6×85 SD | 3.1-3.6 | 45 | 85 | 200 kHz -3 MHz | Fe/NFe | 4-pin Fischer connector (to Hocking, GE, Rohmann and Forester drive units, etc.) |
RO3.6-4.1×85 SD | 3.6-4.1 | 45 | 85 | 200 kHz -3 MHz | Fe/NFe | |
RO4.1-4.6×85 SD | 4.1-4.6 | 45 | 85 | 200 kHz -3 MHz | Fe/NFe | |
RO4.6-5.1×85 SD | 4.6-5.1 | 45 | 85 | 200 kHz -3 MHz | Fe/NFe | |
RO5.1-5.6×85 SD | 5.1-5.6 | 45 | 85 | 200 kHz -3 MHz | Fe/NFe | |
RO5.6-6.1×85 SD | 5.6-6.1 | 45 | 85 | 200 kHz -3 MHz | Fe/NFe | |
RO6.1-6.5×85 SD | 6.1-6.5 | 45 | 85 | 200 kHz -3 MHz | Fe/NFe | |
RO6.5-7.5×85 SD | 6.5-7.5 | 45 | 85 | 200 kHz -3 MHz | Fe/NFe | |
RO7.5-8.5×85 SD | 7.5-8.5 | 45 | 85 | 200 kHz -3 MHz | Fe/NFe | |
RO8.5-9.5×85 SD | 8.5-9.5 | 45 | 85 | 200 kHz -3 MHz | Fe/NFe | |
RO9.5-10.5×85 SD | 9.5-10.5 | 45 | 85 | 200 kHz -3 MHz | Fe/NFe | |
RO10.5-11.5×85 SD | 10.5-11.5 | 45 | 85 | 200 kHz -3 MHz | Fe/NFe | |
RO11.5-12.5×85 SD | 11.5-12.5 | 45 | 85 | 200 kHz -3 MHz | Fe/NFe | |
RO12.5-13.5×85 SD | 12.5-13.5 | 45 | 85 | 200 kHz -3 MHz | Fe/NFe | |
RO13.5-14.5×85 SD | 13.5-14.5 | 45 | 85 | 200 kHz -3 MHz | Fe/NFe | |
RO14.5-15.5×85 SD | 14.5-15.5 | 45 | 85 | 200 kHz -3 MHz | Fe/NFe | |
RO15.5-16.5×85 SD | 15.5-16.5 | 45 | 85 | 200 kHz -3 MHz | Fe/NFe | |
RO16.5-17.5×85 SD | 16.5-17.5 | 45 | 85 | 200 kHz -3 MHz | Fe/NFe | |
RO17.5-18.5×85 SD | 17.5-18.5 | 45 | 85 | 200 kHz -3 MHz | Fe/NFe | |
RO18.5-19.5×85 SD | 18.5-19.5 | 45 | 85 | 200 kHz -3 MHz | Fe/NFe | |
RO19.5-20.5×85 SD | 19.5-20.5 | 45 | 85 | 200 kHz -3 MHz | Fe/NFe | |
RO20.5-21.5×85 SD | 20.5-21.5 | 45 | 85 | 200 kHz -3 MHz | Fe/NFe | |
RO21.5-22.5×85 SD | 21.5-22.5 | 45 | 85 | 200 kHz -3 MHz | Fe/NFe | |
RO22.5-23.5×85 SD | 22.5-23.5 | 45 | 85 | 200 kHz -3 MHz | Fe/NFe | |
RO23.5-24.5×85 SD | 23.5-24.5 | 45 | 85 | 200 kHz -3 MHz | Fe/NFe | |
RO24.5-25.5×85 SD | 24.5-25.5 | 45 | 85 | 200 kHz -3 MHz | Fe/NFe |
RO | 3.1-3.6 | x | 85 | SD (Sh) |
1 | 2 |
| 3 | 4 |
1. RO – dynamic rotating probe for bolt holes testing.
2. Range of hole size, mm.
3. Probe length, mm. Standard length of 45 mm (1,8") can be changed upon request. To be chosen based on the required working length (“WL”).
4. Probe type designation: “SD”
“S” (Split) – Split end delrin housing flexible body made of delrin, “D”(Differential).
