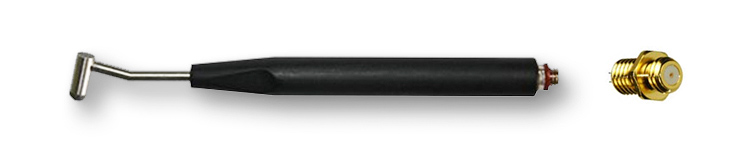

Angle Shaft (L-shaped) Surface ECP:
- typical absolute single-coil probe built according to the “Single coil” scheme
- designed for testing of the complex-shape details with complicated access or parts having protruding elements
- applied together with the eddy current flaw detectors Eddycon C, Eddycon CL and flaw detectors from other producers.
Designation | Tip Ø 'D', | Drop length, | Length, | Centre | Connector | Material |
SU200K5A15°4.5Dx6.4-105 S | 4.5 | 6.4 | 105 | 200 kHz | Microdot | Fe/NFe |
SU500K5A15°3Dx6.4-105 S | 3 | 6.4 | 105 | 500 kHz | Fe/NFe | |
SU500K5A15°4.5Dx6.4-105 S | 4.5 | 6.4 | 105 | 500 kHz | Fe/NFe | |
SU500K5A15°4.5Dx12.7-105 S | 4.5 | 12.7 | 105 | 500 kHz | Fe/NFe | |
SU2М5A15°2.5Dx2.7-105 S | 2.5 | 2.7 | 105 | 2 MHz | NFe | |
SU2М5A15°3Dx2.7-105 S | 3 | 2.7 | 105 | 2 MHz | NFe | |
SU2М5A15°3Dx6.4-105 S | 3 | 6.4 | 105 | 2 MHz | NFe | |
SU2М5A15°3Dx12.7-105 S | 3 | 12.7 | 105 | 2 MHz | NFe | |
SU6М5A15°2.5Dx6.4-105 S | 2.5 | 6.4 | 105 | 6 MHz | NFe |
SU | 200K | 5A | 15° | 4.5D | x | 6.4 | - | 105 | S(Sh) |
1 | 2 | 3 | 4 | 5 |
| 6 |
| 7 | 8
|
1. SU – surface probe for surface flaws detection.
2. Probe frequency:
“HZ” designates the Hz range; “К” designates the kHz range; “М” designates the MHz range.
3. Drop angle of a sensing element to the probe axis “5А” is 90.
4. Angle of a handle.
5. Probe tip diameter, mm
6. Drop length, mm
7. Probe length, mm. Standard length of 105 mm (4.1") can be changed upon request.
8. Probe type designation: “S”. “S” – Single coil probe.
Probes of standard type are manufactured unshielded. In case a shielded probe is required, when making an order, please indicate the letters ”Sh” (Shielded) at the end of a designation code.
