Eddy-current testing equipment

OKOndt Group at 20th World Conference on Non-Destructive Testing (20th WCNDT), Incheon, Korea May 2024.

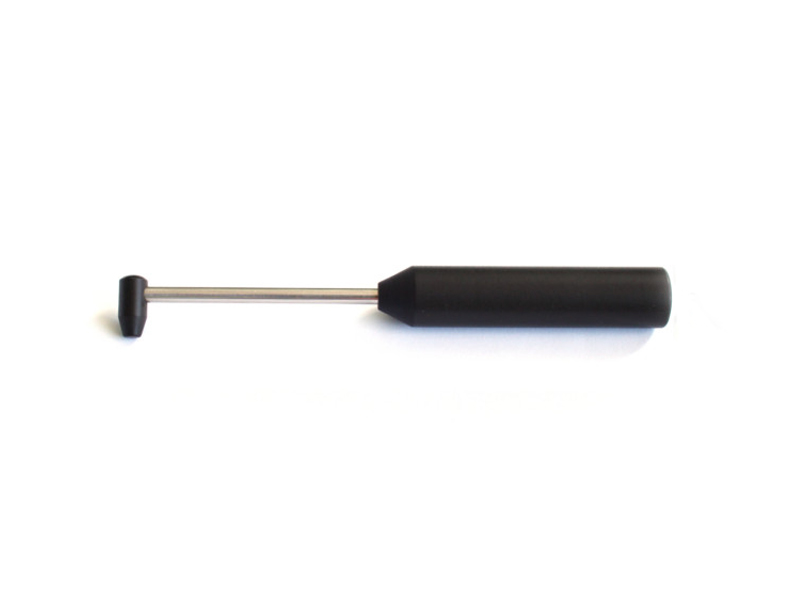

Right angle surface probe (Reflection type)

Right angle surface probe (Reflection type)

Straight Shaft Probe for sub-surface flaws detection in the second layer, through the first layer with up to 1.5 mm thickness (e.g., testing of load-bearing elements under aircraft skin) (Reflection type)

Right angle Probe for sub-surface flaws detection in the second layer, through the first layer with up to 1.5 mm thickness (e.g., testing of load-bearing elements under aircraft skin) (Reflection type)

Dynamic Rotating Countersink Probe (100˚ angle of chamfer, Differential Unshielded)

Encircling probe for testing the cylindrical objects made of non-magnetic materials (Reflection type)

Dynamic Rotating Bolt Hole Probe with Split Tip (coils are positioned at right angle to the probe shaft length; Differential Unshielded)

Rail calibration block RS 2353/1-8N-RAIL for ETS2-77

Rail calibration block RS 2353/1-4N-RAIL for ETS2-77

Calibration Blocks for Subsurface Defects Detection

Calibration Blocks for Subsurface Defects Detection

Calibration Blocks for Surface Defects Detection (of a Flat Shape)

Calibration Blocks for Surface Defects Detection (of a Flat Shape)

Calibration Blocks for Surface Defects Detection (of Irregular Shape)

Calibration Blocks for Surface Defects Detection (of Irregular Shape)

Calibration Blocks for Holes Testing

Calibration Blocks for Holes Testing

Calibration Blocks for Metric Thread Testing

Calibration Blocks for Metric Thread Testing
