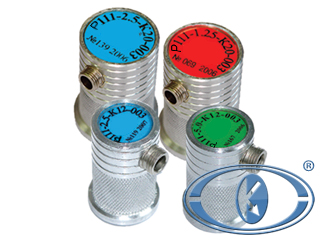

Ultrasonic contact straight-beam single crystal probes
Designation | Reflector diameter | Testing range by МD4, MD18 blocks | Probe frequency | Signal/noise ratio at the depths of testing range, no worse than | Working surface dimensions |
mm | mm | MHz | dB | mm | |
P111-1,25-K20-003 | 3,2 | 15-180 | 1,25±0,13 | 10 | Ø22 |
P111-2,5-K12-003 | 1,6 | 10-180 | 2,5±0,25 | 10 | Ø14 |
P111-2,5-K20-003 | 1,6 | 25-400 | 2,5±0,25 | 10 | Ø22 |
P111-5-K6-003 | 1,2 | 5-70 | 5±0,5 | 10 | Ø8 |
P111-5-K12-003 | 1,2 | 15-200 | 5±0,5 | 10 | Ø14 |
P111-10-K4-003 | 1,0 | 5-30 | 10±1 | 10 | Ø6 |
- operating temperatures range is from minus 10 to plus 50 °С.
** - for UD2-12 flaw detector the final three figures of probe -002 designation (for example P121-1,25-40-M-002).
Ultrasonic contact straight-beam single crystal probes with elastic protector for work on rough surfaces
Designation | Reflector diameter | Testing range (in steel) | Probe frequency | Signal/noise ratio at the depths of testing range, no worse than | Working surface dimensions |
mm | mm | MHz | dB | mm | |
P111-1,25-20P-003* | 4,0 | 30-180 | 1,25±0,13 | 10 | Ø23 |
P111-2,5-12P-003* | 1,6 | 20-180 | 2,5±0,25 | 10 | Ø16 |
P111-2,5-20P-003* | 1,6 | 30-400 | 2,5±0,25 | 10 | Ø23 |
P111-5-6P-003* | 1,2 | 15-70 | 5±0,5 | 10 | Ø16 |
P111-5-12P-003* | 1,2 | 15-130 | 5±0,5 | 10 | Ø16 |
* These probes can be delivered at extra cost.
- operating temperatures range is from minus 10 to plus 50 °С.
