Ultrasonic thickness gauges


TUZ-5 Purpose

ТUZ-5 portable manual ultrasonic thickness gauge is intended for on-the-fly measurement of thickness of products made from different materials and sound velocity measurement with one-sided access to them.

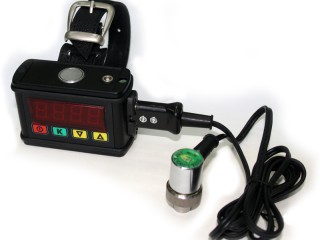

TUZ-5 portable manual ultrasonic thickness gauge

Probes for TUZ-5 portable manual ultrasonic thickness gauge

ТUZ-5 thickness gauge advantages:

  • Small weight;
  • small overall dimensions;
  • wide range of testing thicknesses;
  • great duration of continuous operation;
  • automatic probe zero calibration.

ТUZ-5 thickness gauge specifications:

Range of measuring thicknesses 0.6-300 mm
Weight of the thickness gauge with one probe 0.3 kg
Overall dimensions of the thickness gauge 64х89х36 mm
Time of operating mode setup 10 s
Time of continuous operation 20 hours
Sealing protection level IР 64
Temperature mode minus 30...+50 ˚С
Thickness gauge features
  • case is made of metal;
  • small overall dimensions;
  • possibility of thickness gauge fastening on the hand.

Metrological performance:

Admissible absolute error ΔН ± (0.1 + 0.005×Hx) mm
Admissible relative error δC ± 1.5 %
Admissible additional error at the surface roughness of Rz=320 µm ± 0.2 mm
Admissible additional error at the surface curvature radius of R=30 mm ± 0.1 mm

Probes for thickness gauge:

Ultrasonic double crystal probes for manual thickness gauges:

Designation Operating frequency, МHz Operating range of thickness measurement, mm Dimensions of working surface, mm Overall dimensions of probes, mm
P112-10-6/2-Т-003 10±1 0.6 – 20 9 22х39
P112-5-10/2-Т-003 5±0.5 1 – 100 14 22х42
P112-2.5-12/2-Т-003 2.5±0.25 3 – 300 16 24х42
  • View Delivery set for ultrasonic thickness gauge TUZ-5
